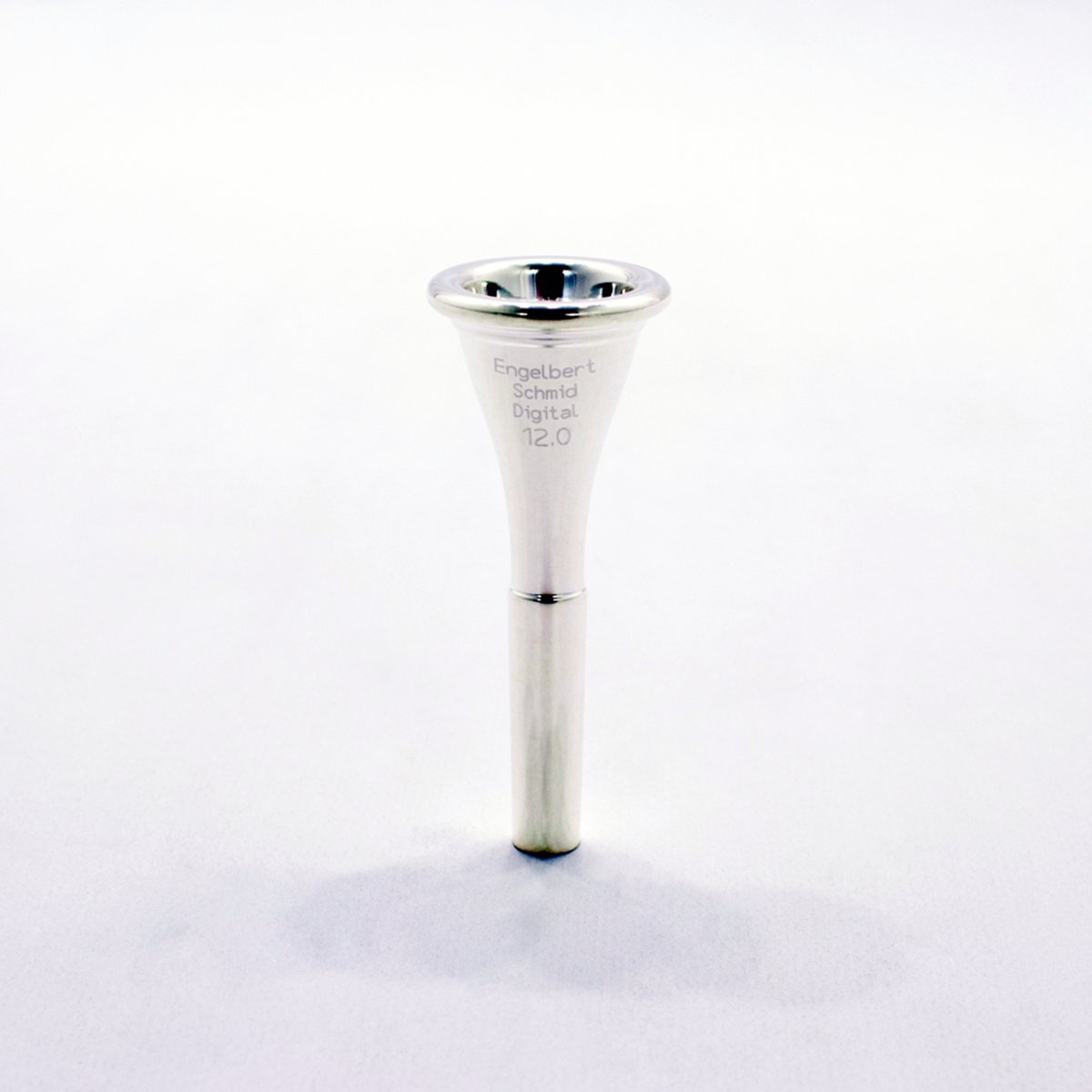

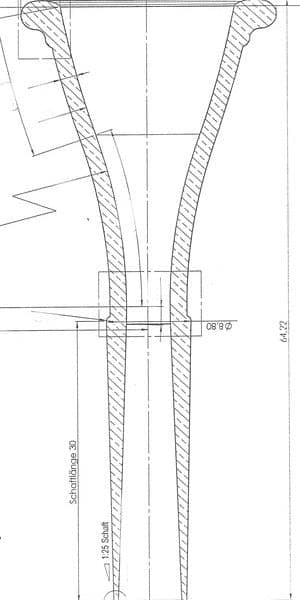

Engelbert Schmid mouthpieces are available in four different diameters, six different cup sizes, and two distinct cup shapes. The traditional models are spun by hand on a standard lathe and digital models are designed with computer software and produced using specialized, wear-free tooling. Traditional models have a uniform exterior profile, while the digital models have a variable exterior profile, making the cup shape visible from the outside.
Engelbert Schmid mouthpieces feature a "combo taper" which can be used on either European or standard/Morse shank horns.

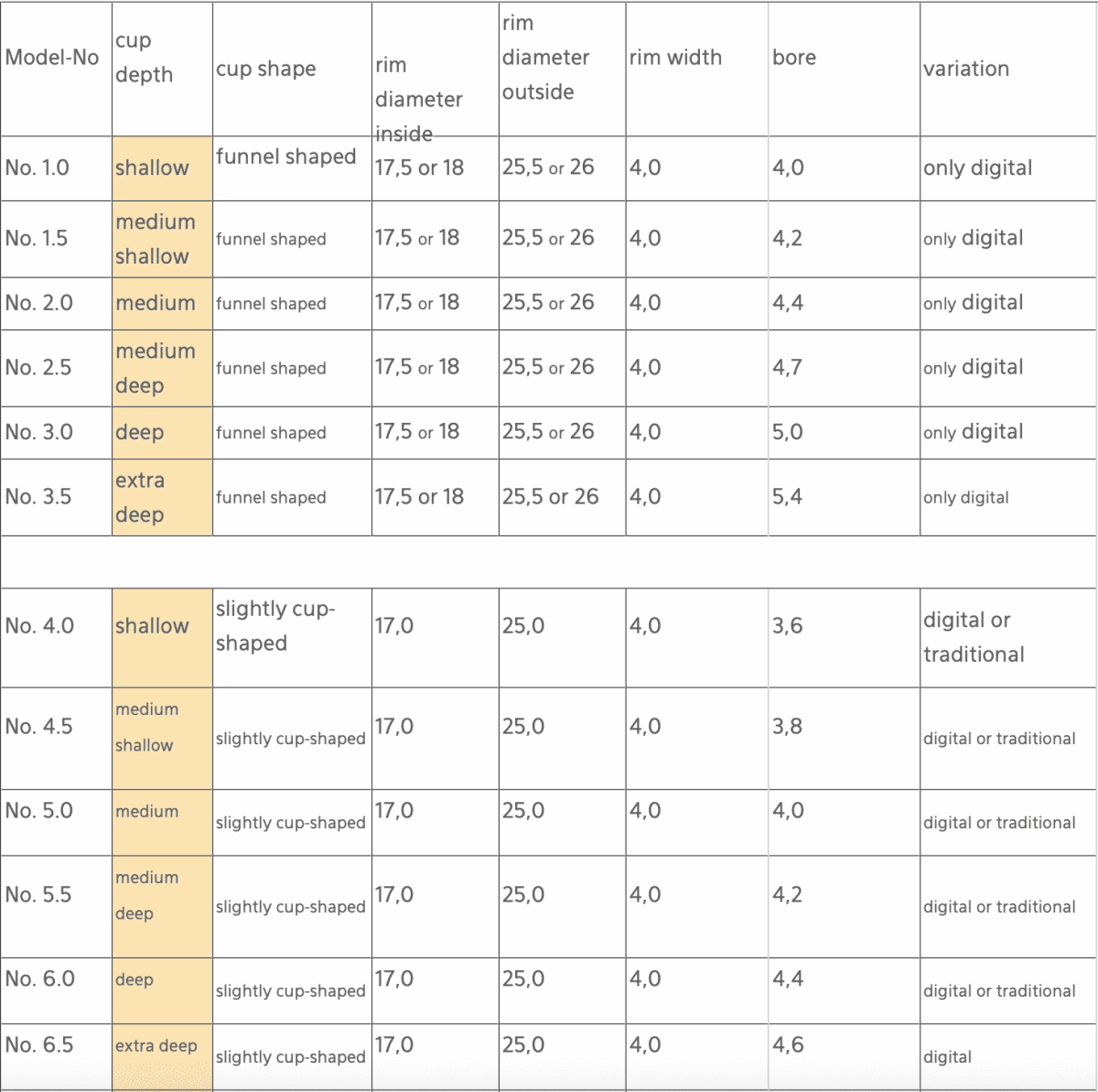

| Model No. | Cup Depth | Cup Shape | Inner Rim Diameter | Outer Rim Diameter | Rim Width | Bore | Variation |
|---|---|---|---|---|---|---|---|
| 1.0 | shallow | funnel-shaped | 17.5 or 18.0 | 25.5 or 26.0 | 4.0 | 4.0 | only digital |
| 1.5 | medium shallow | funnel-shaped | 17.5 or 18.0 | 25.5 or 26.0 | 4.0 | 4.2 | only digital |
| 2.0 | medium | funnel-shaped | 17.5 or 18.0 | 25.5 or 26.0 | 4.0 | 4.4 | only digital |
| 2.5 | medium deep | funnel-shaped | 17.5 or 18.0 | 25.5 or 26.0 | 4.0 | 4.7 | only digital |
| 3.0 | deep | funnel-shaped | 17.5 or 18.0 | 25.5 or 26.0 | 4.0 | 5.0 | only digital |
| 3.5 | extra deep | slightly cup-shaped | 17.5 or 18.0 | 25.5 or 26.0 | 4.0 | 5.4 | digital or traditional |
| 4.0 | shallow | slightly cup-shaped | 17.0 | 25.0 | 4.0 | 3.6 | digital or traditional |
| 4.5 | medium shallow | slightly cup-shaped | 17.0 | 25.0 | 4.0 | 3.8 | digital or traditional |
| 5.0 | medium | slightly cup-shaped | 17.0 | 25.0 | 4.0 | 4.0 | digital or traditional |
| 5.5 | medium deep | slightly cup-shaped | 17.0 | 25.0 | 4.0 | 4.2 | digital or traditional |
| 6.0 | deep | slightly cup-shaped | 17.0 | 25.0 | 4.0 | 4.4 | digital or traditional |
| 6.5 | extra deep | slightly cup-shaped | 17.0 | 25.0 | 4.0 | 4.6 | only digital |

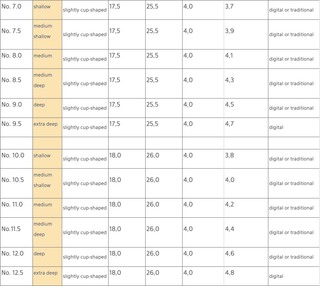

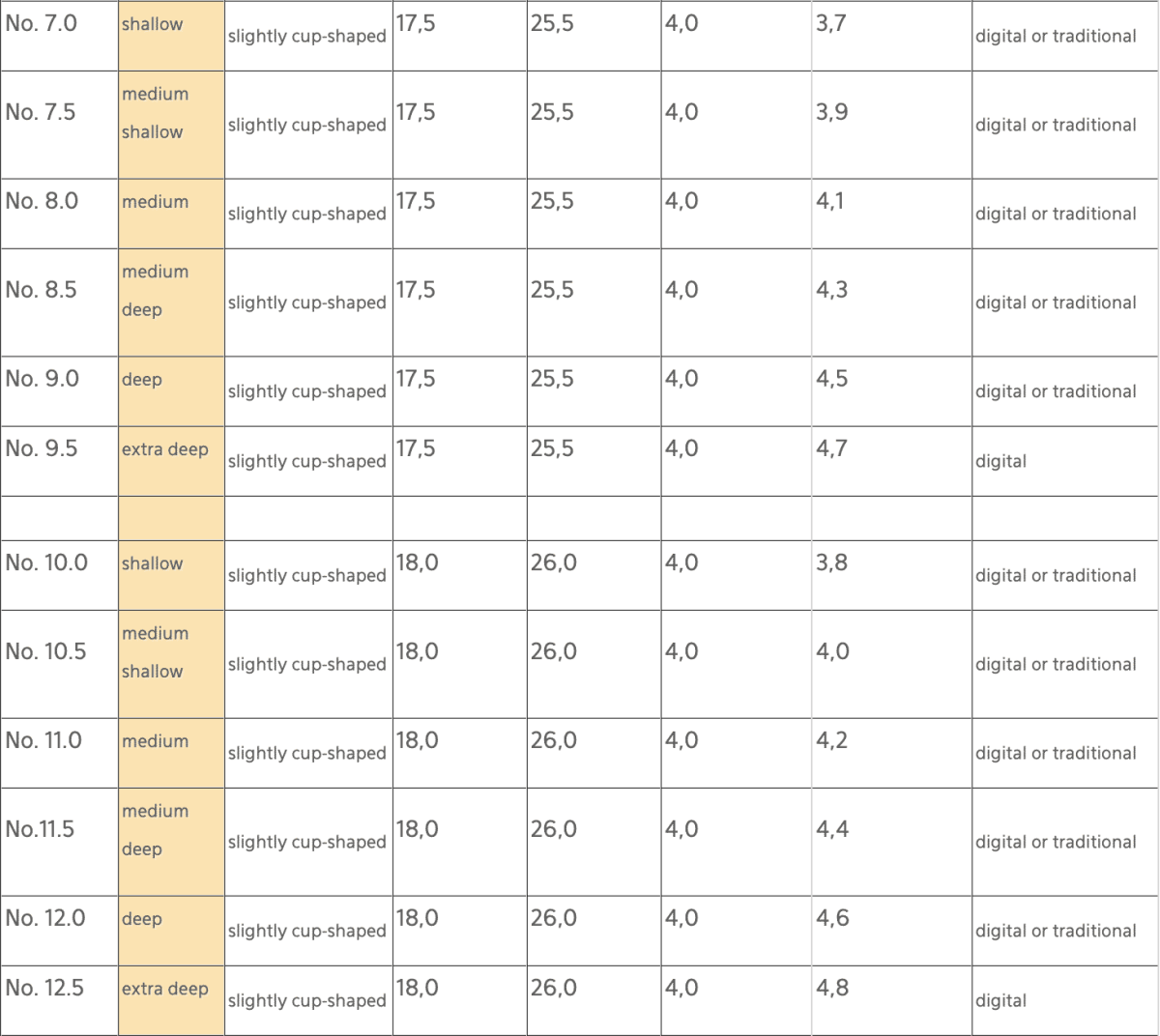

| 7.0 | shallow | slightly cup-shaped | 17.5 | 25.5 | 4.0 | 3.7 | digital or traditional |
| 7.5 | medium shallow | slightly cup-shaped | 17.5 | 25.5 | 4.0 | 3.9 | digital or traditional |
| 8.0 | medium | slightly cup-shaped | 17.5 | 25.5 | 4.0 | 4.1 | digital or traditional |
| 8.5 | medium deep | slightly cup-shaped | 17.5 | 25.5 | 4.0 | 4.3 | digital or traditional |
| 9.0 | deep | slightly cup-shaped | 17.5 | 25.5 | 4.0 | 4.5 | digital or traditional |
| 9.5 | extra deep | slightly cup-shaped | 17.5 | 25.5 | 4.0 | 4.7 | only digital |
| 10.0 | shallow | slightly cup-shaped | 18.0 | 26.0 | 4.0 | 3.8 | digital or traditional |
| 10.5 | medium shallow | slightly cup-shaped | 18.0 | 26.0 | 4.0 | 4.0 | digital or traditional |
| 11.0 | medium | slightly cup-shaped | 18.0 | 26.0 | 4.0 | 4.2 |
